DAC-HZ12BME Datasheet - DATEL

Industry-Standard Digital-to-Analog Converters

DAC-HZ12BME Features

* 12-Bit binary and 3-digit BCD models

* 7 Output ranges

* 3μs Vout settling time

* 300ns Iout settling time

* Guaranteed monotonicity over full temperature range

* Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum

* Differentia

DAC-HZ12BME General Description

INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") Input Logic Level, Bit OFF ("0") Logic Loading DAC-HZ12B (BINARY) DAC-HZ12D (BCD) 12 binary bits 3 BCD digits Comp. binary Comp. BCD Comp. off. binary * 0V to +0.8V at *1mA +2.4V.

DAC-HZ12BME Datasheet (277.53 KB)

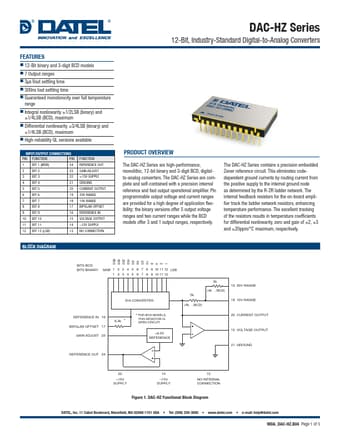

Preview of DAC-HZ12BME PDF
