DAC-HZ12DME Industry-Standard Digital-to-Analog Converters

INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") Input Logic Level, Bit OFF ("0") Logic Loading DAC-HZ12B (BINARY) DAC-HZ12D (BCD) 12 binary bits 3 BCD digits Comp. binary Comp. BCD Comp. off. binary * 0V to +0.8V at *1mA +2.4V.

DAC-HZ12DME Features

* 12-Bit binary and 3-digit BCD models

* 7 Output ranges

* 3μs Vout settling time

* 300ns Iout settling time

* Guaranteed monotonicity over full temperature range

* Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum

* Differentia

DAC-HZ12BGC-DATEL.pdf

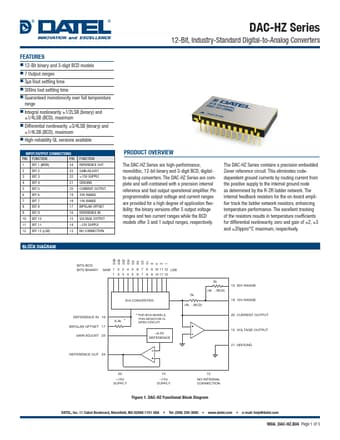

DAC-HZ12DME Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC-HZ12DME, DAC-HZ12BGC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC-HZ12DME, DAC-HZ12BGC

Manufacturer:

DATEL

File Size:

277.53 KB

Description:

Industry-standard digital-to-analog converters.

Note:

This datasheet PDF includes multiple part numbers: DAC-HZ12DME, DAC-HZ12BGC.
Please refer to the document for exact specifications by model.
