DAC-HZ12DGC, DAC-HZ12BGC Industry-Standard Digital-to-Analog Converters

DAC-HZ12DGC Description

® ® DAC-HZ Series 12-Bit, Industry-Standard Digital-to-Analog Converters .
INPUTS Resolution Coding, Unipolar Output Coding, Bipolar Output Input Logic Level, Bit ON ("0") Input Logic Level, Bit OFF ("0") Logic Loading DAC-H.

DAC-HZ12DGC Features

* 12-Bit binary and 3-digit BCD models
* 7 Output ranges
* 3μs Vout settling time
* 300ns Iout settling time
* Guaranteed monotonicity over full temperature range
* Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB (BCD), maximum
* Differentia

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC-HZ12DGC, DAC-HZ12BGC. Please refer to the document for exact specifications by model.

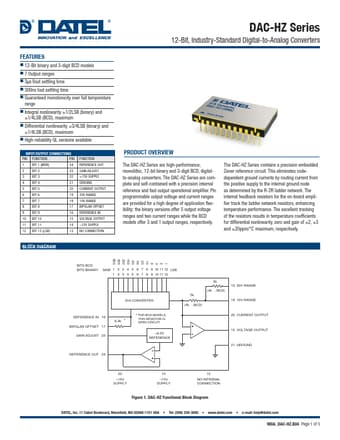

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC-HZ12DGC, DAC-HZ12BGC
Manufacturer
DATEL
File Size
277.53 KB
Datasheet
DAC-HZ12BGC-DATEL.pdf
Description
Industry-Standard Digital-to-Analog Converters
Note
This datasheet PDF includes multiple part numbers: DAC-HZ12DGC, DAC-HZ12BGC.
Please refer to the document for exact specifications by model.
