SHM-12 Datasheet, Amplifiers, DATEL

SHM-12 Features

  • Amplifiers
  • Fast acquisition time: 10ns to ±0.1% 15ns to ±0.024% 20ns to ±0.012%
  • ±0.006% Nonlinearity
  • 65µVrms output noise
  • 120MHz small signal bandwidth

PDF File Details

Part number:

SHM-12

Manufacturer:

DATEL

File Size:

153.79kb

Download:

📄 Datasheet

Description:

12-bit linear monolithic sample-hold amplifiers. The SHM-12 is an extremely high-speed and accurate monolithic sample-and-hold amplifier designed for fast data acquisition applicatio

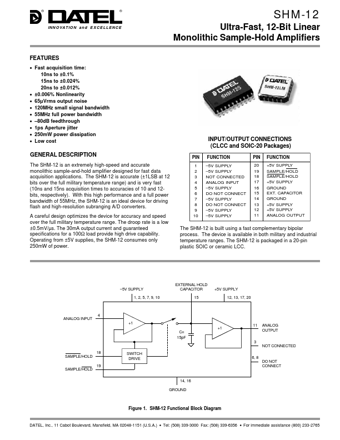

Datasheet Preview: SHM-12 📥 Download PDF (153.79kb)
Page 2 of SHM-12 Page 3 of SHM-12

SHM-12 Application

  • Applications The SHM-12 is accurate (±1LSB at 12 bits over the full military temperature range) and is very fast (10ns and 15ns acquisition times t
