SHM-14 Datasheet, Amplifier, DATEL

SHM-14 Features

  • Amplifier
  • Fast acquisition time: 10ns to ±0.1% 25ns to ±0.012% 35ns to ±0.003%
  • ±0.0012% Nonlinearity
  • 65μV rms output noise
  • 60MHz full power bandwidth

PDF File Details

Part number:

SHM-14

Manufacturer:

DATEL

File Size:

244.98kb

Download:

📄 Datasheet

Description:

14-bit linear sample-hold amplifier. The SHM-14 is an extremely high-speed and accurate sample-and-hold amplifier designed for fast data acquisition applications. The SHM

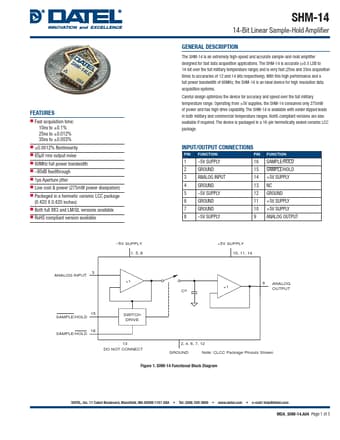

Datasheet Preview: SHM-14 📥 Download PDF (244.98kb)
Page 2 of SHM-14 Page 3 of SHM-14

SHM-14 Application

  • Applications The SHM-14 is accurate (±0.5 LSB to 14-bit over the full military temperature range) and is very fast (25ns and 35ns acquisition times
