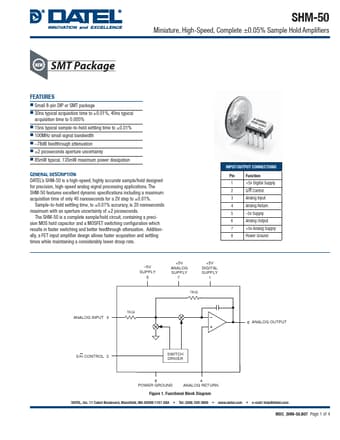

SHM-50 Datasheet Preview — Preview of SHM-50 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SHM-50
Manufacturer	DATEL
File Size	172.04 KB
Description	Sample Hold Amplifier
Datasheet	SHM-50-DATEL.pdf

SHM-50 Product details

Description

DATEL’s SHM-50 is a high-speed, highly accurate sample/hold designed for precision, high-speed analog signal processing applications.

Features

Small 8-pin DIP or SMT package.
30ns typical acquisition time to ±0.01%, 40ns typical acquisition time to 0.005%.
15ns typical sample-to-hold settling time to ±0.01%.
100MHz small signal bandwidth.
78dB feedthrough attenuation.
±2 picoseconds aperture uncertainty.
85mW typical, 135mW maximum power dissipation.
