SHM-43 Datasheet, Sample/hold, Datel

SHM-43 Features

  • Sample/hold
  • 35 nSec maximum acquisition time to 0.01%
  • 30 nSec maximum hold-mode settling to 0.01%
  • 1 pSec aperture uncertainty
  • 150 MHz small-signal bandwidth

PDF File Details

Part number:

SHM-43

Manufacturer:

Datel

File Size:

112.10kb

Download:

📄 Datasheet

Description:

0.01% hybrid sample/hold.

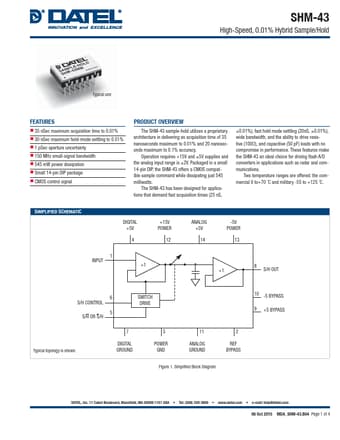

Datasheet Preview: SHM-43 📥 Download PDF (112.10kb)
Page 2 of SHM-43 Page 3 of SHM-43

SHM-43 Application

  • Applications that demand fast acquisition times (25 nS, ±0.01%), fast hold mode settling (20nS, ±0.01%), wide bandwidth, and the ability to drive r

TAGS

SHM-43
0.01
%
Hybrid
Sample
Hold
Datel
