SHM-950 Datasheet, Amplifiers, DATEL

SHM-950 Features

  • Amplifiers
  • 18 bit accuracy
  • Small 8-pin DIP package
  • 1.5μs max. acquisition time to ±0.001%
  • 90ns max. sample-to-hold settling time to ±0.001%
  • 70 V/μ

PDF File Details

Part number:

SHM-950

Manufacturer:

DATEL

File Size:

228.63kb

Download:

📄 Datasheet

Description:

Sample-hold amplifiers. DATEL’s SHM-950 is a high-speed, highly accurate sample/hold designed for precision, high-speed analog signal processing applications

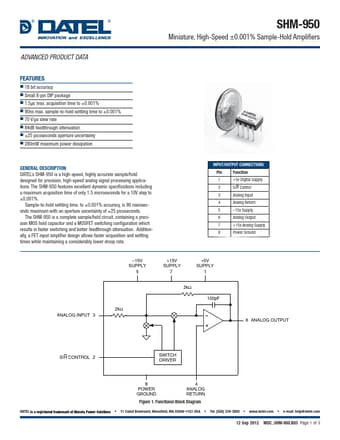

Datasheet Preview: SHM-950 📥 Download PDF (228.63kb)
Page 2 of SHM-950 Page 3 of SHM-950

SHM-950 Application

  • Applications The SHM-950 features excellent dynamic specifications including a maximum acquisition time of only 1.5 microseconds for a 10V step to ±
