S3JBF - GENERAL PURPOSE SILICON RECTIFIER

S3JBF Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS S3ABF THRU S3MBF TECHNICAL SPECIFICATIONS OF GENERAL PURPOSE SILICON RECTIFIER VOLTAGE RANGE - 50.

S3JBF Applications

* Glass passivated junction
* Low leakage current SMBFL MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rated flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.06 gram

📥 Download Datasheet

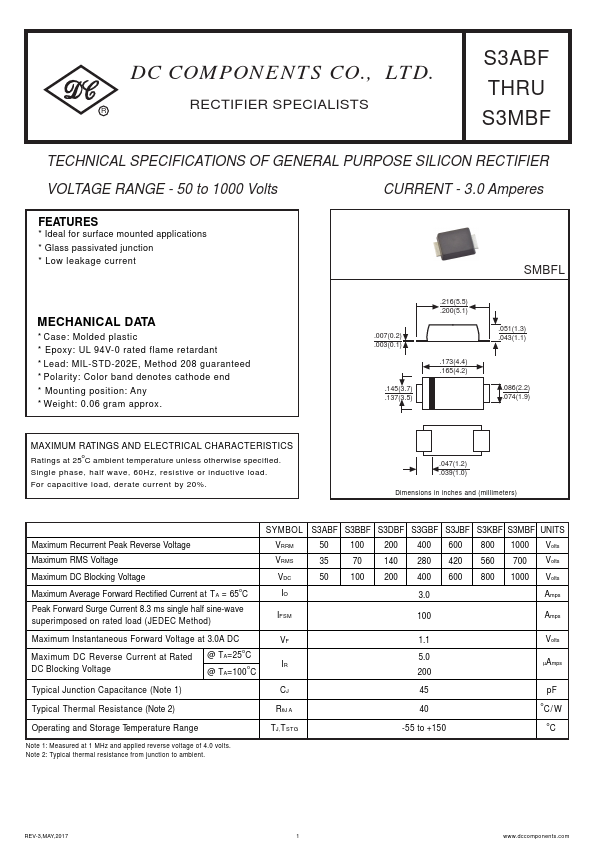

Preview of S3JBF PDF

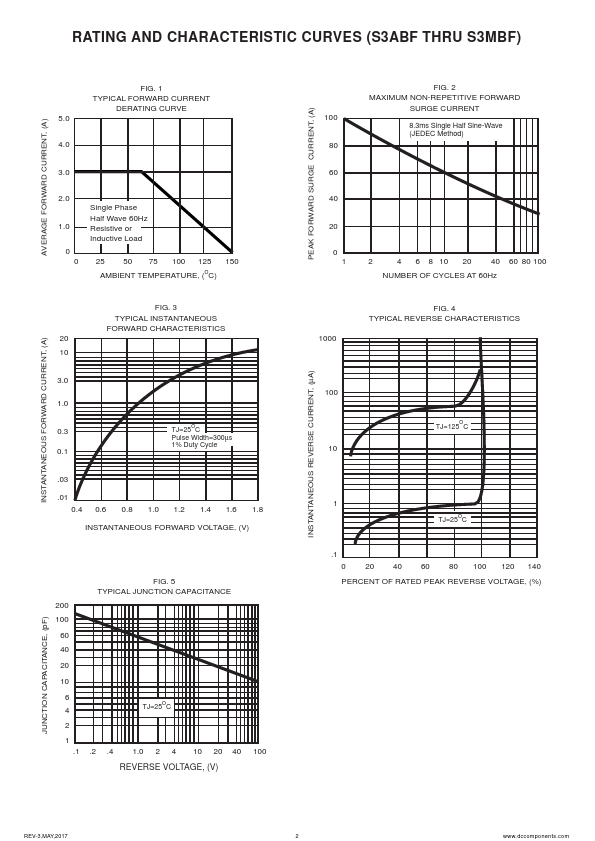

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3JBF
Manufacturer
DC COMPONENTS
File Size
33.37 KB
Datasheet
S3JBF-DCCOMPONENTS.pdf
Description
GENERAL PURPOSE SILICON RECTIFIER
