AH4930 3D MAGNETIC LINEAR HALL SENSOR

AH4930 Description

AH4930 3D MAGNETIC LINEAR HALL SENSOR WITH I2C INTERFACE .
The AH4930 3D magnetic chip is a miniature monolithic sensor IC sensitive to the three orthogonal components of the flux density applied to the IC.

AH4930 Features

* 3D magnetic flux density sensing
* Low power-down current 9nA typical
* Very low power consumption = 13μA during operation (10Hz, typ)
* Digital output via standard I2C interface up to 1 Mbit/sec
* 12-bit data resolution for each measurement direction

AH4930 Applications

* include joysticks, control elements (white goods, multifunction knops), or electric meters (anti-tampering) and any other application that requires accurate angular measurements or low power consumptions. Pin Assignments (Top View) SCL/INT 1 6 GND 2 AH4930 5 GND 3 74 SOT26 (Type A1) SDA GND

📥 Download Datasheet

Preview of AH4930 PDF

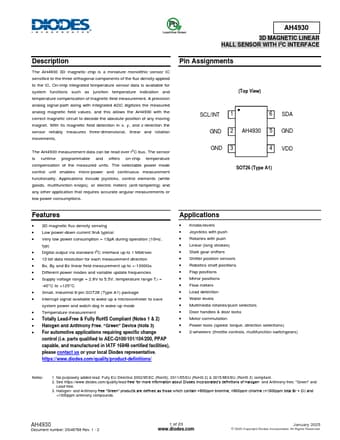

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AH4930
Manufacturer
DIODES ↗
File Size
1.03 MB
Datasheet
AH4930-DIODES.pdf
Description
3D MAGNETIC LINEAR HALL SENSOR
