AH4930Q - AUTOMOTIVE 3D MAGNETIC LINEAR HALL SENSOR

Product Overview

DIODES

📥 Download Datasheet

AH4930Q AUTOMOTIVE 3D MAGNETIC LINEAR HALL SENSOR by DIODES - Datasheet Preview — Datasheet preview – AH4930Q

Datasheet Details

Part number	AH4930Q
Manufacturer	DIODES
File Size	1.03 MB
Description	AUTOMOTIVE 3D MAGNETIC LINEAR HALL SENSOR
Datasheet	AH4930Q Datasheet

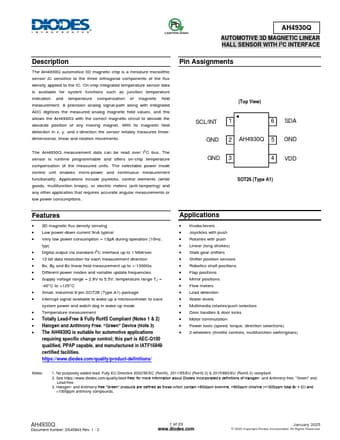

Additional preview pages of the AH4930Q datasheet.

Product details

Description

The AH4930Q automotive 3D magnetic chip is a miniature monolithic sensor IC sensitive to the three orthogonal components of the flux density applied to the IC.

Features

3D magnetic flux density sensing.
Low power-down current 9nA typical.
Very low power consumption = 13μA during operation (10Hz, typ).
Digital output via standard I2C interface up to 1 Mbit/sec.
12-bit data resolution for each measurement direction.
Bx, By and Bz linear field measurement up to +-1300Gs.
Different power modes and variable update frequencies.
Supply voltage range = 2.8V to 5.5V, temperature range TJ = -40°C to.
