AH49F Linear Hall Effect

AH49F Description

NEW PRODUCT A Product Line of Diodes Incorporated AH49F LINEAR HALL EFFECT IC .
The AH49F is a small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet.

AH49F Features

* low noise output, which makes it unnecessary to use external filtering components. It also includes precision resistors to provide increased temperature stability and accuracy. The operating temperature range of these linear Hall sensors is -40°C to +105°C, appropriate for commercial, consumer, and

AH49F Applications

* Position Sensing
* Liquid Level Sensing
* Weight Sensing
* Ferrous Metal Detector
* Vibration Sensing
* Rotary Encoder
* Magnetic Code Reading
* Motor Control
* Current Sensing Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/E

📥 Download Datasheet

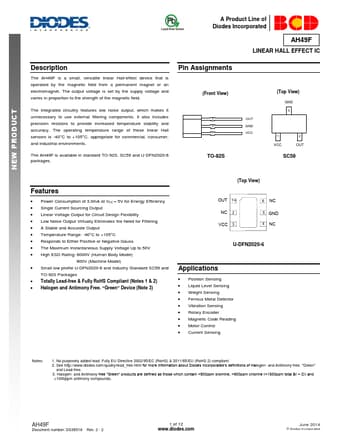

Preview of AH49F PDF
