AL5810 - ADJUSTABLE 60V LINEAR LED DRIVER

Product Overview

DIODES

Datasheet Details

Part number	AL5810
Manufacturer	DIODES
File Size	927.77 KB
Description	ADJUSTABLE 60V LINEAR LED DRIVER
Datasheet	AL5810 Datasheet

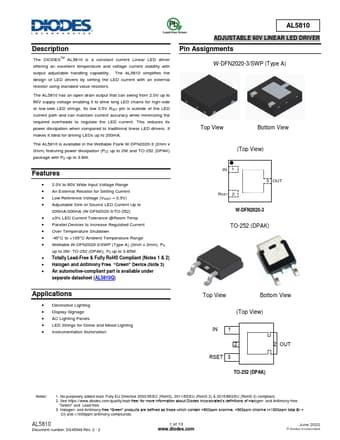

Additional preview pages of the AL5810 datasheet.

Product details

Description

The DIODESTM AL5810 is a constant current Linear LED driver offering an excellent temperature and voltage current stability with output adjustable handling capability.

Features

2.0V to 60V Wide Input Voltage Range.
An External Resistor for Setting Current.
Low Reference Voltage (VRSET = 0.5V).
Adjustable Sink or Source LED Current Up to 200mA/200mA (W-DFN2020-3/TO-252).
±3% LED Current Tolerance @Room Temp.
Parallel Devices to Increase Regulated Current.
Over Temperature Shutdown.
-40°C to +105°C Ambient Temperature Range.
Wettable W-DFN2020-3/SWP (Type A) (2mm x 2mm), PD up to 2W; TO-252 (DPAK), PD up to 3.85W.
