AL5873

55V/250mA THREE-CHANNEL LINEAR LED DRIVER

AL5873 Features

* Wide Input Voltage Range from 5V to 55V

* Each Channel up to 250mA Current Capability

* Set Stop and Tail Current Independently Through Two Resistors

* Switch LED Current Between Stop and Tail Function Automatically via FULL Input

* PWM Dimming via Both PWM Input and Power Supp

AL5873 General Description

The AL5873 is a three-channel linear LED driver with PWM dimming and analog dimming control. Each channel can drive up to 250mA with a total driving current up to 750mA. The LED channel current of the AL5873 can be set through two reference resistors connected to the REF1 and REF2 pins. The AL5873 r.

AL5873 Datasheet (1.13 MB)

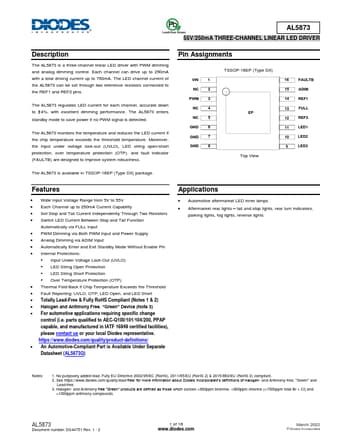

Preview of AL5873 PDF

Datasheet Details

Part number:

AL5873

Manufacturer:

DIODES ↗

File Size:

1.13 MB

Description:

55v/250ma three-channel linear led driver.
