AL5887Q - 36-CHANNEL I2C/SPI LED DRIVER

Product Overview

DIODES

Datasheet Details

Part number	AL5887Q
Manufacturer	DIODES
File Size	1.19 MB
Description	36-CHANNEL I2C/SPI LED DRIVER
Datasheet	AL5887Q Datasheet

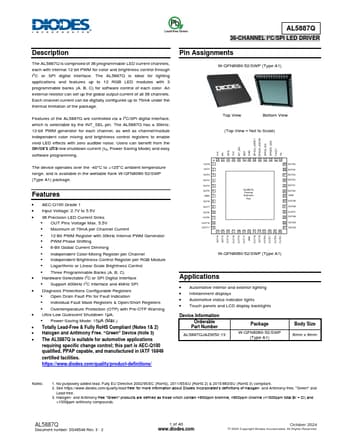

Additional preview pages of the AL5887Q datasheet.

Product details

Description

The AL5887Q is comprised of 36 programmable LED current channels, each with internal 12-bit PWM for color and brightness control through I2C or SPI digital interface.

Features

up to 12 RGB LED modules with 3 programmable banks (A, B, C) for software control of each color. An external resistor can set up the global output current of all 36 channels. Each channel current can be digitally configured up to 70mA under the thermal limitation of the package. Features of the AL5887Q are controlled via a I2C/SPI digital interface, which is selectable by the INT_SEL pin. The AL5887Q has a 30kHz, 12-bit PWM generator for each channel, as well as channel/module independent color.
