AL5887

I2C/SPI 36-CHANNEL RGB LED DRIVER

AL5887 Features

* of the AL5887 are controlled via SPI/I2C digital interface. Using a dedicated pin INT_SEL to select either SPI or I2C protocols. The AL5887 has a 30kHz, 12-bit PWM generator for each channel, as well as channel/module independent color mixing and brightness control registers to enable vivid LED effe

AL5887 General Description

The AL5887 is comprised of 36 programmable LED current channels each with internal 12-bit PWM for color and brightness control through SPI or I2C digital interface. AL5887 is ideal for up to 12 RGB LED modules lighting applications with 3 programmable banks (A, B, C) for software control of each col.

AL5887 Datasheet (1.09 MB)

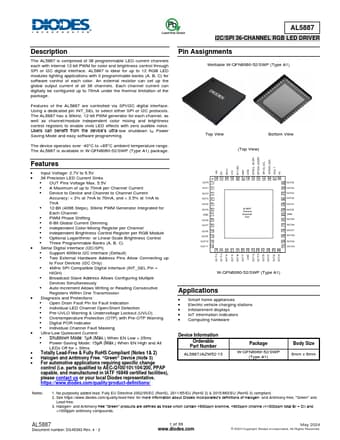

Preview of AL5887 PDF

Datasheet Details

Part number:

AL5887

Manufacturer:

DIODES ↗

File Size:

1.09 MB

Description:

I2c/spi 36-channel rgb led driver.
