AL5871Q

55V LINEAR LED DRIVER

AL5871Q Features

* Wide Input Voltage Range from 5V to 55V

* Up to 750mA Output Current Capacity

* Low Drop-out Voltage on LED Pin

* Output Current Adjustable by a Low Power External Reference Resistor

* PWM and Analog Dimming with Excellent Linearity

* Automatically Enter and Exit Standby Mo

AL5871Q General Description

The DIODES™ AL5871Q is an automotive-grade single channel linear LED driver with PWM and analog dimming control. The AL5871Q can drive up to 750mA and the LED current can be set by the low power reference resistor connected to the REF pin. The AL5871Q regulates LED current accurate to ±4%, with exce.

AL5871Q Datasheet (1.20 MB)

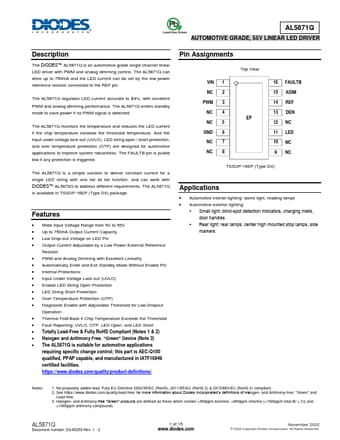

Preview of AL5871Q PDF
