DMP3037LSSQ Description

NEW PRODUCT DMP3037LSSQ P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -30V RDS(ON) Max 32mΩ @ VGS = -10V 50mΩ @ VGS = -4.5V ID TA = +25.
and Applications This MOSFET is designed to meet the stringent requirements of automotive applications.

DMP3037LSSQ Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* 100% Unclamped Inductive Switching (UIS) Test in Production

DMP3037LSSQ Applications

* This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in:
* DC-DC Converters
* Power Management Functions

📥 Download Datasheet

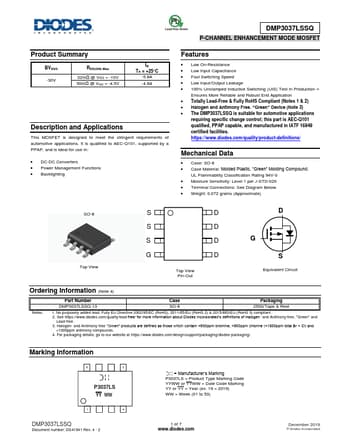

DMP3037LSSQ Datasheet Preview — Preview of DMP3037LSSQ PDF

Datasheet Details

Part number: DMP3037LSSQ
Manufacturer: DIODES ↗
File Size: 576.42 KB
Datasheet: DMP3037LSSQ-DIODES.pdf
Description: P-Channel MOSFET
