DMP3037LSS, P-Channel MOSFET

NEW PRODUCT DMP3037LSS P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -30V RDS(ON) MAX 32mΩ @ VGS = -10V 50mΩ @ VGS = -4.5V ID TA = +25°.
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) yet maintain superior switching performance, making it ideal.

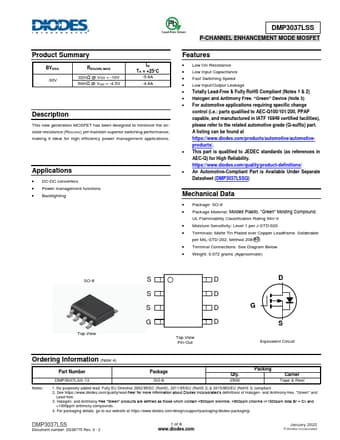

datasheet Preview Page 1 from Datasheet4u.com

DMP3037LSS-Diodes.pdf

DMP3037LSS Datasheet Preview — Preview of DMP3037LSS PDF

Datasheet Details

Part number:

DMP3037LSS

Manufacturer:

DIODES ↗

File Size:

647.57 KB

Description:

P-Channel MOSFET

Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

Applications

* Applications
* DC-DC converters
* Power management functions
