DMTH69M8LFVW - 60V N-Channel MOSFET

DIODES

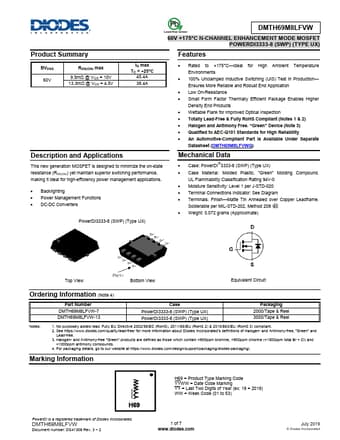

DMTH69M8LFVW Datasheet Preview — Preview of DMTH69M8LFVW PDF

Datasheet Details

Part number	DMTH69M8LFVW
Manufacturer	DIODES ↗
File Size	596.04 KB
Description	60V N-Channel MOSFET
Datasheet	DMTH69M8LFVW-DIODES.pdf

DMTH69M8LFVW Product details

Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Backlighting Power Management Functions DC-DC Converters PowerDI3333-8 (SWP) (Type UX) Rated to +175°C Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching (UIS) Test in Production Ensures

Features

BVDSS 60V RDS(ON) max 9.5mΩ @ VGS = 10V 13.3mΩ @ VGS = 4.5V ID max TC = +25°C 45.4A 38.4A.
