DMTH69M9LPDWQ Datasheet - DIODES

DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

DMTH69M9LPDWQ Features

* Rated to +175°C

* Ideal for High Ambient Temperature Environments

* 100% Unclamped Inductive Switching (UIS) Test in Production

* Ensures More Reliable and Robust End Application

* High Conversion Efficiency

* Low RDS(ON)

* Minimizes On State Losses

* Lo

DMTH69M9LPDWQ General Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. * Wireless charging * DC-DC converters * Power managements PowerDI5060-8/SWP (Type UXD) .

DMTH69M9LPDWQ Datasheet (547.33 KB)

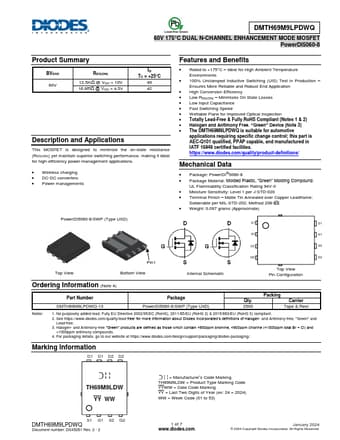

DMTH69M9LPDWQ Datasheet Preview — Preview of DMTH69M9LPDWQ PDF

Datasheet Details

Part number:

DMTH69M9LPDWQ

Manufacturer:

DIODES ↗

File Size:

547.33 KB

Description:

Dual n-channel enhancement mode mosfet.
DMTH69M9LPDWQ 60V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8 Product Summary BVDSS 60V RDS(ON) 12.5mΩ @ VGS = 10V 16.8mΩ @ VGS = 4..
