DIM450M1HS12-PB500

Half Bridge IGBT

DIM450M1HS12-PB500 Features

* Trench Gate IGBT

* Cu Base with Enhanced Al2O3 Substrates

* 10µs Short Circuit Withstand

* Compact Module KEY PARAMETERS VCES VCE(sat)

* (typ) IC (max) IC(PK) (max) 1200V 1.65V 450A 900A

* Measured at the auxiliary terminals APPLICATIONS

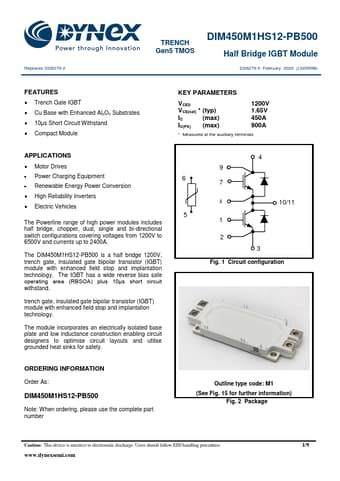

DIM450M1HS12-PB500 Datasheet (860.36 KB)

Preview of DIM450M1HS12-PB500 PDF

Datasheet Details

Part number:

DIM450M1HS12-PB500

Manufacturer:

DYNEX

File Size:

860.36 KB

Description:

Half bridge igbt.
