DIM400DDS17-A000, Dual Switch IGBT Module

DIM400DDS17-A000 Dual Switch IGBT Module DS5859-1.0 June 2005 (LN24024) .

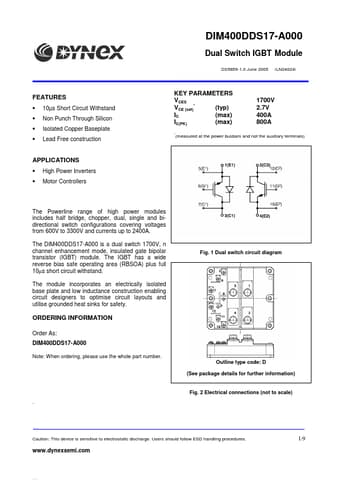

datasheet Preview Page 1 from Datasheet4u.com

DIM400DDS17-A000_DynexSemiconductor.pdf

DIM400DDS17-A000 Datasheet Preview — Preview of DIM400DDS17-A000 PDF

Datasheet Details

Part number:

DIM400DDS17-A000

Manufacturer:

Dynex Semiconductor

File Size:

841.33 KB

Description:

Dual Switch IGBT Module

Features

* 10µs Short Circuit Withstand Non Punch Through Silicon Isolated Copper Baseplate KEY PARAMETERS VCES VCE (sat)
* (typ) IC (max) IC(PK) (max)
* 1700V 2.7V 400A 800A Lead Free construction (measured at the power busbars and not the auxiliary terminals

Applications

* High Power Inverters Motor Controllers The Powerline range of high power modules includes half bridge, chopper, dual, single and bidirectional switch configurations covering voltages from 600V to 3300V and currents up to 2400A. The DIM400DDS17-A000 is a dual switch 1700V, n chan
