DIM400DDM12-A000

Dual Switch IGBT Module

DIM400DDM12-A000 Features

* 10µs Short Circuit Withstand Non Punch Through Silicon Lead Free construction Isolated MMC Base with AlN Substrates High Thermal Cycling Capability KEY PARAMETERS V CES V CE(sat)

* (typ) IC (max) I C(PK) (max) 1200V 2.2 V 400A 800A

* (measured at the power busbars and not the auxiliary ter

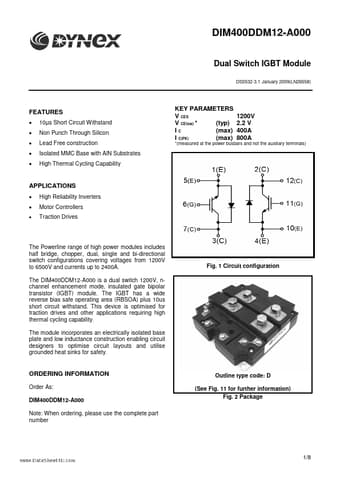

DIM400DDM12-A000 Datasheet (639.74 KB)

Preview of DIM400DDM12-A000 PDF

Datasheet Details

Part number:

DIM400DDM12-A000

Manufacturer:

Dynex Semiconductor

File Size:

639.74 KB

Description:

Dual switch igbt module.
