DIM400GDM33-A000

Dual Switch IGBT Module Preliminary Information

Dynex

DIM400GDM33-A000 Features

* s s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon Isolated MMC Base with AlN Substrates KEY PARAMETERS VCES VCE(sat) (typ) (max) IC IC(PK) (max) 3300V 3.2V 400A 800A APPLICATIONS s s s External connection E1 E1 C2 C2 High Reliability Inverters Motor

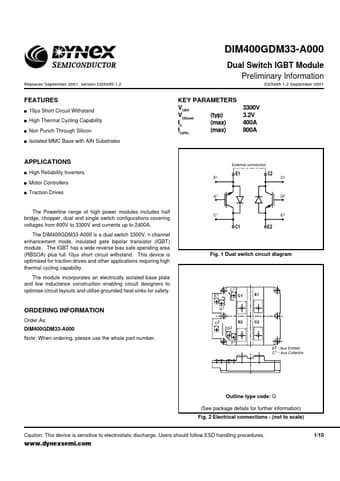

DIM400GDM33-A000 Datasheet (162.78 KB)

DIM400GDM33-A000 Datasheet Preview — Preview of DIM400GDM33-A000 PDF

Datasheet Details

Part number:

DIM400GDM33-A000

Manufacturer:

Dynex

File Size:

162.78 KB

Description:

Dual switch igbt module preliminary information.
DIM400GDM33-A000 DIM400GDM33-A000 Dual Switch IGBT Module Preliminary Information Replaces September 2001, version DS5495-1.2 DS5495-1.2 September 20.
