DS3800 Advanced NV SRAM Battery Cap

The DS3800 Battery Cap is a snap *on lithium power source for Dallas Semiconductors 40mm ball *grid array (BGA) Nonvolatile SRAM modules. After a host BGA module has been soldered in place and cleaned, the DS3800 Battery Cap is snapped onto the module to serve as the secondary power su.

DS3800 Features

* Houses 400 mAh primary lithium battery Snaps directly onto a surface

* mounted 40mm ball

* grid array (BGA) Nonvolatile SRAM module Attaches after host BGA module has been surface

* mounted to protect lithium battery from the high temperatures of reflow soldering Maintains mechanic

DS3800 Datasheet (26.57 KB)

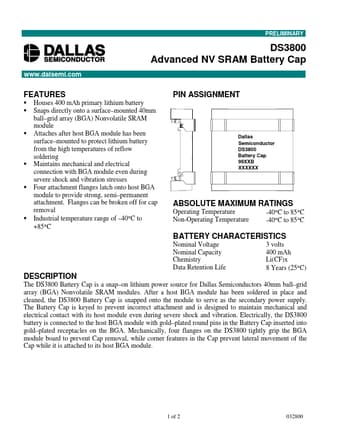

DS3800 Datasheet Preview — Preview of DS3800 PDF

Datasheet Details

Part number:

DS3800

Manufacturer:

Dallas Semiconducotr

File Size:

26.57 KB

Description:

Advanced nv sram battery cap.
