DS38464

3.3V 64K x 40 NV SRAM SIMM

DS38464 Features

* 2Mbits organized as a 64K x 40 memory 6 years minimum data retention in the absence of external power Nonvolatile circuitry transparent to and independent of host system Automatic write protection circuitry safeguards against data loss Battery mo

DS38464 General Description

A0 - A15 DQ0

* DQ39 CEA WE OE VCC GND Address Inputs Data Inputs/Outputs Chip Enable Inputs Write Enable Inputs Output Enable Inputs 3.3V Power Supply Ground DS38464 72-PIN SIMM 1 of 10 102902 DS38464 DESCRIPTION The DS38464 is a self-contained 2,621,440-bit, nonvolatile static RAM, whi.

DS38464 Datasheet (204.53 KB)

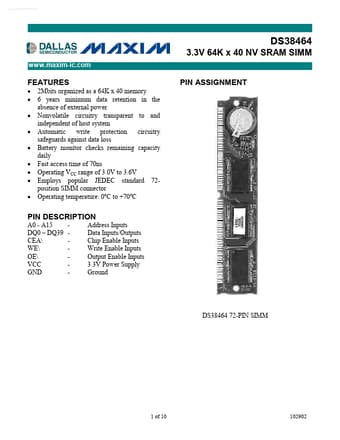

Preview of DS38464 PDF

Datasheet Details

Part number:

DS38464

Manufacturer:

Maxim Integrated ↗ Products

File Size:

204.53 KB

Description:

3.3v 64k x 40 nv sram simm.
