DS3862

Octal High Speed Trapezoidal Bus Transceiver

DS3862 Features

* n Guaranteed A.C. specifications on noise immunity and propagation delay over the specified temperature and supply voltage range n Temperature insensitive receiver thresholds track bus logic level and respond symmetrically to positive and negative going pulses n Trapezoidal bus waveforms reduce nois

DS3862 General Description

The DS3862 is an octal high speed schottky bus transceiver intended for use with terminated 120Ω impedance lines. It is specifically designed to reduce noise in unbalanced transmission systems. The open collector drivers generate precise trapezoidal waveforms with rise and fall times of 9 ns (typica.

DS3862 Datasheet (231.88 KB)

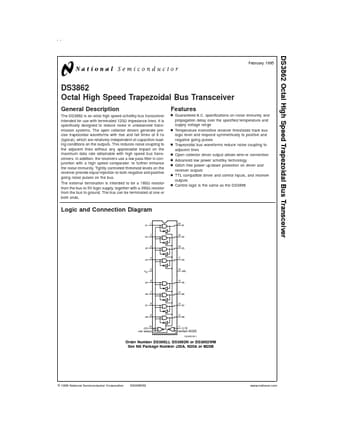

Preview of DS3862 PDF

Datasheet Details

Part number:

DS3862

Manufacturer:

National Semiconductor

File Size:

231.88 KB

Description:

Octal high speed trapezoidal bus transceiver.
