DS3832C-311

3.3V/ 32Mb Advanced NV SRAM with Clock

DS3832C-311 Features

* 3.0V to 3.6V operation Surface-mount nonvolatile (NV) RAM ball-grid array (BGA) module construction 1024k x 32 NV SRAM memory space and separate 64 x 8 real-time clock (RTC) memory space RTC maintains hundredths of seconds, seconds, minutes, hours, day, date, month, and year

DS3832C-311 General Description

The DS3832C-311 is a 1,048,576 x 32 advanced NV SRAM module with a 168-bump BGA pinout. The highly integrated DS3832C-311 contains a 64-byte RTC, four 8Mb SRAMs, and control circuitry that constantly monitors VCC for an out-of-tolerance condition. When such a condition occurs, the DS3832C311 makes u.

DS3832C-311 Datasheet (428.24 KB)

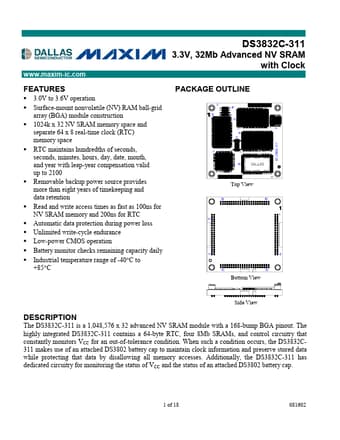

Preview of DS3832C-311 PDF

Datasheet Details

Part number:

DS3832C-311

Manufacturer:

Dallas Semiconducotr

File Size:

428.24 KB

Description:

3.3v/ 32mb advanced nv sram with clock.
