DS3882 - Dual-Channel Automotive CCFL Controller

Description

The DS3882 is a dual-channel cold-cathode fluorescent lamp (CCFL) controller for automotive applications that provides up to 300:1 dimming.

Features

  • EMI suppression functionality and provides a lamp current overdrive mode for rapid lamp heating in cold weather conditions. The DS3882 supports configurations of 1 or 2 lamps with fully independent lamp control and minimal external components. Multiple DS3882 controllers can be cascaded to support.

📥 Download Datasheet

Datasheet preview – DS3882

Datasheet Details

Part number DS3882
Manufacturer Maxim Integrated Products
File Size 571.63 KB
Description Dual-Channel Automotive CCFL Controller
Datasheet download datasheet DS3882 Datasheet
Additional preview pages of the DS3882 datasheet.

📁 Similar Datasheet

  • DS3883A - BTL 9-Bit Data Transceiver (National Semiconductor)
  • DS3884 - Pythagoras Processor (Mitel Networks Corporation)
  • DS3884A - BTL Handshake Transceiver (National Semiconductor)
  • DS3885 - BTL Arbitration Transceiver (National Semiconductor)
  • DS3886A - BTL 9-Bit Latching Data Transceiver (National Semiconductor)
  • DS3800 - Advanced NV SRAM Battery Cap (Dallas Semiconducotr)
  • DS3802 - Advanced NV SRAM Battery (Dallas Semiconductor)
  • DS3803 - 1024k Flexible NV SRAM SIMM (Dallas Semiconductor)
  • DS3832C-311 - 3.3V/ 32Mb Advanced NV SRAM with Clock (Dallas Semiconducotr)
  • DS3862 - Octal High Speed Trapezoidal Bus Transceiver (National Semiconductor)
Other Datasheets by Maxim Integrated Products
  • DS38464 - 3.3V 64K x 40 NV SRAM SIMM
  • DS3030W - 3.3V Single-Piece 256kb Nonvolatile SRAM
  • DS3045W - Single-Piece 1Mb Nonvolatile SRAM
  • DS3050W - Single-Piece 4Mb Nonvolatile SRAM
  • DS3065W - Single-Piece 8Mb Nonvolatile SRAM
  • DS3065WP - Nonvolatile SRAM
  • DS3070W - Single-Piece 16Mb Nonvolatile SRAM
  • DS3100 - Stratum 3/3E Timing Card-IC

Full PDF Text Transcription

Click to expand full text

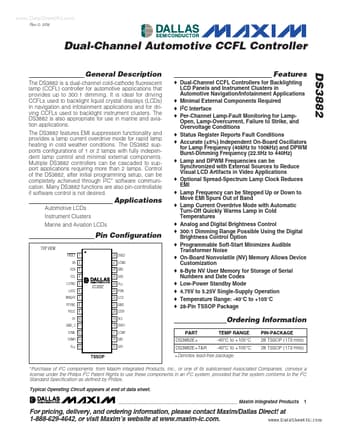

www.DataSheet4U.com Rev 0; 3/06 Dual-Channel Automotive CCFL Controller General Description The DS3882 is a dual-channel cold-cathode fluorescent lamp (CCFL) controller for automotive applications that provides up to 300:1 dimming. It is ideal for driving CCFLs used to backlight liquid crystal displays (LCDs) in navigation and infotainment applications and for driving CCFLs used to backlight instrument clusters. The DS3882 is also appropriate for use in marine and aviation applications. The DS3882 features EMI suppression functionality and provides a lamp current overdrive mode for rapid lamp heating in cold weather conditions. The DS3882 supports configurations of 1 or 2 lamps with fully independent lamp control and minimal external components.
