DS1123L

Programmable Timing Element

DS1123L Features

* Step Sizes of 0.25ns, 0.5ns, 1ns, 2ns DS1123L Applications Telecommunications Digital Test Equipment Digital Video Projection Signal Generators and Analyzers DS1123LE-25 DS1123LE-50 DS1123LE-100 DS1123LE-200 PART Ordering Information TEMP RANGE PINSTEP SIZE/ PACKAGE NO. OF STEPS (150-mi

DS1123L General Description

The DS1123L is an 8-bit programmable timing element similar in function to the DS1023, but operating at 3.3V. Like the DS1023, the DS1123L can delay signals up to a full period or more when used as a delay line, and an on-chip reference delay can be used to offset the inherent “step-zero” delay. Thi.

DS1123L Datasheet (198.59 KB)

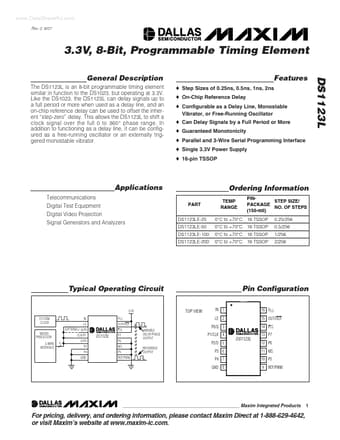

Preview of DS1123L PDF

Datasheet Details

Part number:

DS1123L

Manufacturer:

Dallas Semiconductor

File Size:

198.59 KB

Description:

Programmable timing element.
