DS1124

8-Bit Programmable Timing Element

DS1124 Features

* DS1124 Applications LCD Televisions Telecommunications Digital Test Equipment Digital Video Projection Signal Generators and Analyzers Pin Configuration TOP VIEW + IN 1 E Q GND GND 2 3 4 5 10 VCC 9 VCC D CLK OUT Ordering Information PART DS1124U-25+ TEMP RANGE -40°C to +85°C PIN-PACKAGE 10 μSOP

DS1124 General Description

The DS1124 is an 8-bit programmable timing element similar in function to the DS1021-25. The 256-delay intervals are programmed by using a 3-wire serial interface. With a 0.25ns step size, the DS1124 can provide a delay time from 20ns up to 84ns with an integral nonlinearity of ±3ns.

* 0.25n.

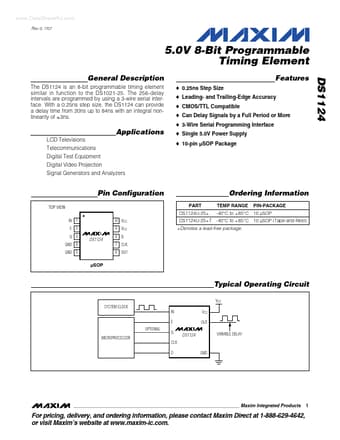

DS1124 Datasheet (168.36 KB)

Preview of DS1124 PDF

Datasheet Details

Part number:

DS1124

Manufacturer:

Maxim Integrated ↗ Products

File Size:

168.36 KB

Description:

8-bit programmable timing element.
