Part number: DS1833
Manufacturer: Dallas Semiconductor
File Size: 114.98KB
Download: 📄 Datasheet
Description: 5V EconoReset
* Automatically restarts microprocessor after power failure
* Maintains active-high reset for 350 ms after VCC returns to an in-tolerance condition
* Accurate.
PIN 1
Ground
PIN 2
Reset
PIN 3 PIN 4
VCC Ground (SOT-223 only)

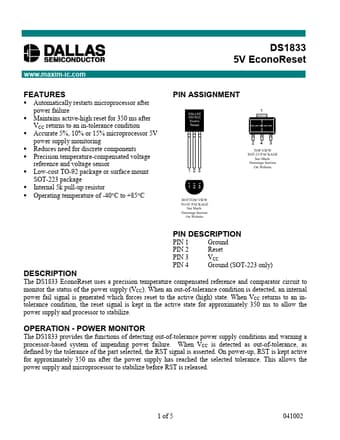

DESCRIPTION
The DS1833 EconoReset uses a precision temperature compensated reference and comparator circuit to
monitor the status of the power supply (VCC). When an out-of-tolera.
