DS1831B datasheet, micromonitor equivalent, Maxim Integrated Products

DS1831B Features and benefits

*
*
*
*
*
*
*
*
*
*
*
* 5V power-on reset 3.3V power-on reset Two referenced comparators with separate outputs for monitor.

DS1831B Application

The TOL inputs configure the tolerance for the specified output and the TD inputs configure the reset time delays. PIN.

DS1831B Description

The DS1831 multisupply monitor and reset monitors up to four system voltages: 5V supply, 3.3V (or 3V) supply, and two additional user configurable voltage monitors. DS1831 power for internal operation comes from the higher voltage level of the 3.3V i.

Image gallery

TAGS

DS1831B

Multisupply

Micromonitor

Maxim Integrated Products

📁 Related Datasheet

DS1831 - Multisupply Micromonitor (Maxim Integrated Products)

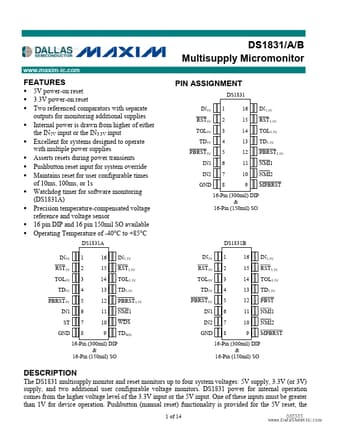

www..com DS1831/A/B Multisupply Micromonitor PIN ASSIGNMENT DS1831 IN5V RST5V TOL5V TD5V PBRST5V IN1 IN2 GND 1 2 3 4 5 6 7 8 16 15 14 13 1.
