Part number: DS1832
Manufacturer: Maxim Integrated (https://www.analog.com/) Products
File Size: 144.07KB
Download: 📄 Datasheet
Description: 3.3 Volt Micromonitor Chip
Halts and restarts an out-of-control microprocessor Holds microprocessor in check during power transients Automatically restarts microprocessor after power failure Monito.
PBRST
TD TOL GND RST
RST ST
VCC
- Pushbutton Reset Input - Time Delay Set - Selects 10% or 20% VCC Detect - Ground - Active High Reset Output - Active Low Reset Output - Strobe Input - Power Supply

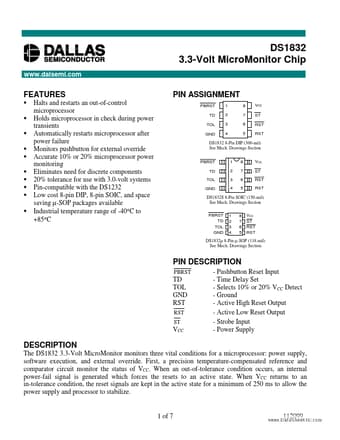

DESCRIPTION
The DS1832 3.3-Volt MicroMonitor mon.
