DS1833A

3.3V EconoReset

DS1833A Features

* Automatically restarts microprocessor after power failure Monitors pushbutton for external override Internal circuitry debounces pushbutton switch Maintains reset for 350ms after VCC returns to an in-tolerance condition or pushbutton releas

DS1833A General Description

PIN 1 PIN 2 PIN 3 PIN 4 GROUND RESET VCC GROUND (SOT-223 ONLY) DESCRIPTION The DS1233A EconoReset monitors two vital conditions for a microprocessor: power supply and external override. A precision temperature-compensated reference and comparator circuit are used to monitor the status of the power.

DS1833A Datasheet (154.72 KB)

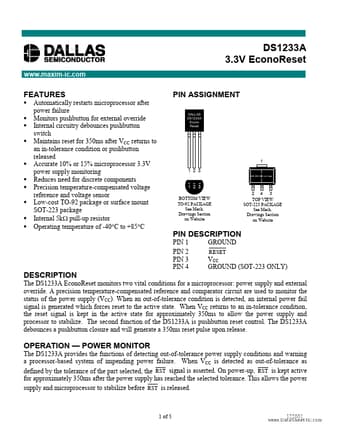

Preview of DS1833A PDF

Datasheet Details

Part number:

DS1833A

Manufacturer:

Dallas Semiconductor

File Size:

154.72 KB

Description:

3.3v econoreset.
