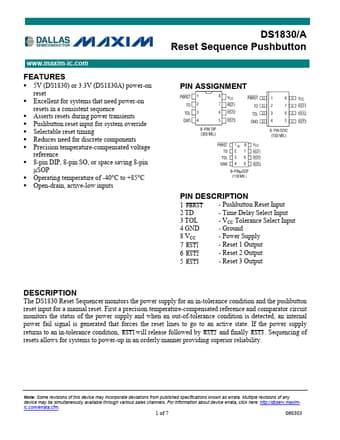

Part number: DS1830
Manufacturer: Maxim Integrated (https://www.analog.com/)
File Size: 276.72KB
Download: 📄 Datasheet
Description: Reset Sequence Pushbutton
* 5V (DS1830) or 3.3V (DS1830A) power-on reset
* Excellent for systems that need power-on resets in a consistent sequence
* Asserts resets during power transi.
1 PBRST
- Pushbutton Reset Input
2 TD
- Time Delay Select Input
3 TOL 4 GND
- VCC Tolerance Select Input - Ground
8 VCC 7 RST1
- Power Supply - Reset 1 Output
6 RST2
- Reset 2 Output
5 RST3
- Reset 3 Output
DESCRIPTION
The DS1830 Reset S.
