DS1830A Datasheet, pushbutton equivalent, Maxim Integrated

DS1830A Features

• Pushbutton
• 5V (DS1830) or 3.3V (DS1830A) power-on reset
• Excellent for systems that need power-on resets in a consistent sequence
• Asserts resets during power transient

PDF File Details

Part number:

DS1830A

Manufacturer:

Maxim Integrated (https://www.analog.com/)

File Size:

276.72kb

Download:

📄 Datasheet

Description:

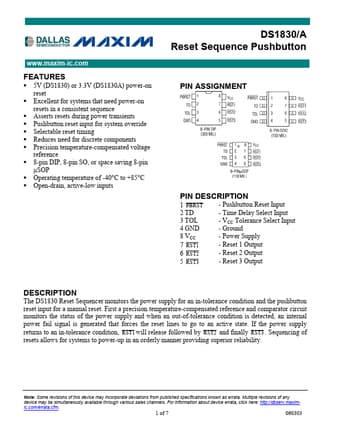

Reset sequence pushbutton. 1 PBRST - Pushbutton Reset Input 2 TD - Time Delay Select Input 3 TOL 4 GND - VCC Tolerance Select Input - Ground 8 VCC 7 RST1
