DS1775 - SOT23-5 Digital Thermometer and Thermostat

Dallas

The DS1775 by Dallas is a SOT23-5 Digital Thermometer and Thermostat. Below is the official datasheet preview.

📥 Download Datasheet

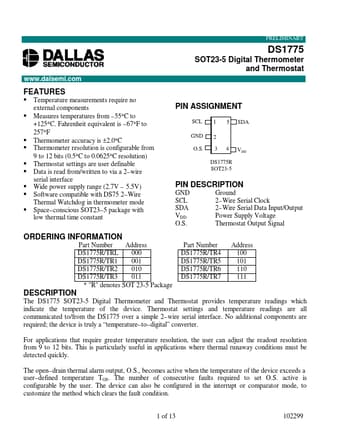

DS1775 SOT23-5 Digital Thermometer and Thermostat by Dallas - Datasheet Preview — Official preview page of the **DS1775** SOT23-5 Digital Thermometer and Thermostat datasheet (Dallas).

Datasheet Details

Part number	DS1775
Manufacturer	Dallas
File Size	230.61 KB
Description	SOT23-5 Digital Thermometer and Thermostat
Datasheet	DS1775_Dallas.pdf
Additional preview pages of the DS1775 datasheet.

DS1775 Product details

Description

GND SCL SDA VDD O.S. Wire Serial Clock 2 Wire Serial Data Input/Output Power Supply Voltage Thermostat Output Signal Address 100 101 110 111 ORDERING INFORMATION Part Number Address DS1775R/TRL 000 DS1775R/TR1 001 DS1775R/TR2 010 DS1775R/TR3 011 "R" denotes SOT 23-5 Package Part Number DS1775R/TR4 DS1775R/TR5 DS1775R/TR6 DS1775R/TR7 DESCRIPTION The DS1775 SOT23-5 Digital Thermometer and Thermostat provides temperature readings which indicate the temperature of th

Features

Temperature measurements require no external components.
Measures temperatures from.
55° C to +125° C. Fahrenheit equivalent is.
67° F to 257° F.
Thermometer accuracy is ±2.0° C.
Thermometer resolution is configurable from 9 to 12 bits (0.5° C to 0.0625° C resolution).
Thermostat settings are user definable.
Data is read from/written to via a 2.
wire serial interface.
Wide power supply range (2.7V.
5.5V).
Software compatibl.
