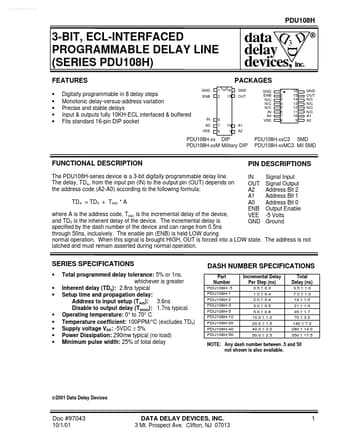

PDU108H - ECL-INTERFACED PROGRAMMABLE DELAY LINE
The PDU108H-series device is a 3-bit digitally programmable delay line.
The delay, TDA, from the input pin (IN) to the output pin (OUT) depends on the address code (A2-A0) according to the following formula: TDA = TD0 + TINC * A PIN DESCRIPTIONS IN OUT A2 A1 A0 ENB VEE GND Signal Input Signal O
PDU108H Features
* Digitally programmable in 8 delay steps Monotonic delay-versus-address variation Precise and stable delays Input & outputs fully 10KH-ECL interfaced & buffered Fits standard 16-pin DIP socket GND ENB 1 2 16 15 data 3 ® delay devices, inc. PACKAGES G
