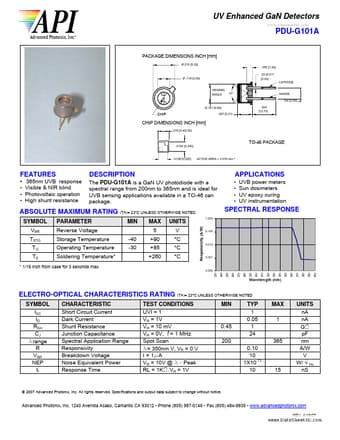

PDU-G101A Datasheet, Detectors, Advanced Photonix

PDU-G101A Features

• Detectors
• 365nm UVB response Visible & NIR blind Photovoltaic operation High shunt resistance DESCRIPTION The PDU-G101A is a GaN UV photodiode with a spec

PDF File Details

Part number:

PDU-G101A

Manufacturer:

Advanced Photonix

File Size:

120.25kb

Download:

📄 Datasheet

Description:

Uv enhanced gan detectors. The PDU-G101A is a GaN UV photodiode with a spectral range from 200nm to 365nm and is ideal for UVB sensing applications available in

PDU-G101A Application

• Applications available in a TO-46 can package. 1.000 APPLICATIONS
• UVB power meters Sun dosimeters UV epoxy
