PDU138 Datasheet - Data Delay Devices

PDU138 - 3-BIT PROGRAMMABLE DELAY LINE

The PDU138-series device is a 3-bit digitally programmable delay line.

The delay, TDA, from the input pin (IN) to the output pin (OUT) depends on the address code (A2-A0) according to the following formula: TDA = TD0 + TINC * A PIN DESCRIPTIONS IN OUT A2 A1 A0 EN/ VCC GND Delay Line Input Non-i

PDU138 Features

* Digitally programmable in 8 delay steps Monotonic delay-versus-address variation Precise and stable delays Input & outputs fully TTL interfaced & buffered 2 10 T L fan-out capability Fits standard 16-pin DIP socket Auto-insertable

PDU138_DataDelayDevices.pdf

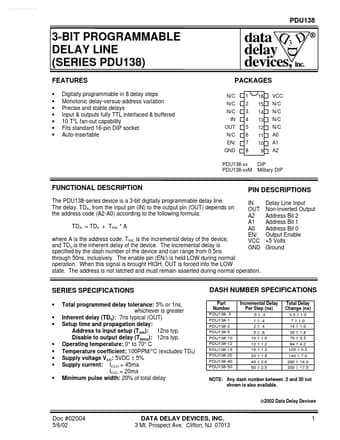

Preview of PDU138 PDF
PDU138 Datasheet Preview Page 2 PDU138 Datasheet Preview Page 3

Datasheet Details

Part number:

PDU138

Manufacturer:

Data Delay Devices

File Size:

61.60 KB

Description:

3-bit programmable delay line.
