PDU13F Datasheet - Data Delay Devices

PDU13F - 3-BIT PROGRAMMABLE DELAY LINE

The PDU13F-series device is a 3-bit digitally programmable delay line.

The delay, TDA, from the input pin (IN) to the output pins (OUT, OUT/) depends on the address code (A2-A0) according to the following formula: TDA = TD0 + TINC * A PIN DESCRIPTIONS IN OUT OUT/ A2 A1 A0 EN/ VCC GND Delay Line

PDU13F Features

* Digitally programmable in 8 delay steps Monotonic delay-versus-address variation Two separate outputs: inverting & non-inverting Precise and stable delays Input & outputs fully TTL interfaced & buffered 10 T2L fan-out ca

PDU13F_DataDelayDevices.pdf

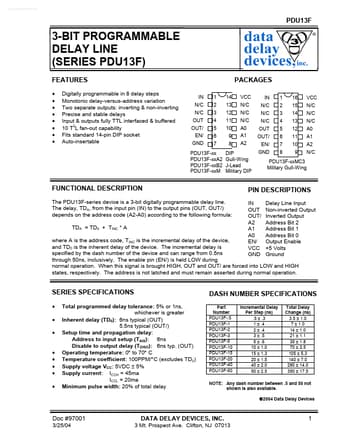

Preview of PDU13F PDF
PDU13F Datasheet Preview Page 2 PDU13F Datasheet Preview Page 3

Datasheet Details

Part number:

PDU13F

Manufacturer:

Data Delay Devices

File Size:

326.21 KB

Description:

3-bit programmable delay line.
