ADCDS-1410, 10 Megapixels/Second CCD Image Converter

PseaeNcpkeaawgeg1Se3MOfoTpr tdieotanils ADCDS-1410 14-Bit, 10 Megapixels/Second CCD Image Converter .

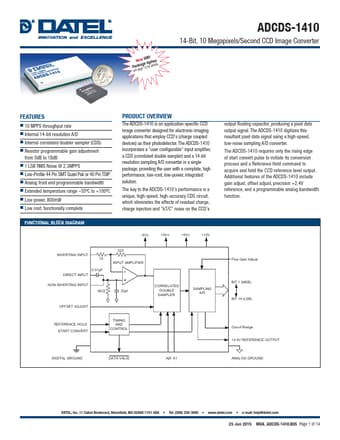

datasheet Preview Page 1 from Datasheet4u.com

ADCDS-1410-Datel.pdf

ADCDS-1410 Datasheet Preview — Preview of ADCDS-1410 PDF

Datasheet Details

Part number:

ADCDS-1410

Manufacturer:

Datel

File Size:

607.04 KB

Description:

10 Megapixels/Second CCD Image Converter

Features

* 10 MPPS throughput rate
* Internal 14-bit resolution A/D
* Internal correlated doubler sampler (CDS)
* Resistor programmable gain adjustment from 0dB to 18dB
* 1 LSB RMS Noise @ 2.3MPPS
* Low-Profile 44 Pin SMT Quad Pak or 40 Pin TDIP
* Analo

Applications

* that employ CCD's (charge coupled devices) as their photodetector. The ADCDS-1410 incorporates a "user configurable" input amplifier, a CDS (correlated double sampler) and a 14-bit resolution sampling A/D converter in a single package, providing the user with a complete, high performance, low-cost,
