ADSD-1402 - 2MSPS Sampling A/D Converter

Datel

The ADSD-1402 by Datel is a 2MSPS Sampling A/D Converter. Below is the official datasheet preview.

📥 Download Datasheet

ADSD-1402 2MSPS Sampling A/D Converter by Datel - Datasheet Preview — Official preview page of the ADSD-1402 2MSPS Sampling A/D Converter datasheet (Datel).

Datasheet Details

Part number	ADSD-1402
Manufacturer	Datel
File Size	232.82 KB
Description	2MSPS Sampling A/D Converter
Datasheet	ADSD-1402-Datel.pdf

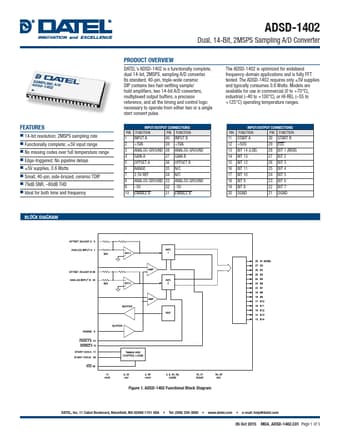

Additional preview pages of the ADSD-1402 datasheet.

ADSD-1402 Product details

Features

14-bit resolution; 2MSPS sampling rate.
Functionally complete; ±5V input range.
No missing codes over full temperature range.
Edge-triggered; No pipeline delays.
±5V supplies, 0.6 Watts.
Small, 40-pin, side-brazed, ceramic TDIP.
79dB SNR,.
80dB THD.
Ideal for both time and frequency.
