ADSD-1410S 10MSPS Sampling A/D Converter

The ADSD-1410S is a functionally complete, dual 14-bit, 10MSPS, sampling A/D converter. Its standard, 40-pin, triple-wide SMT DIP contains two fast-settling sample/hold amplifiers, two 14-bit A/D converters, multiplexed output buffers, a precision reference, and all the timing and control logic nece.

ADSD-1410S Features

* 14-bit resolution; 10MSPS sampling rate

* Functionally complete; ±2.5V input range

* No missing codes over full temperature range

* Edge-triggered

* ±5V supplies, 1.6 Watts

* 76dB SNR,

* 83dB THD

* Ideal for both time and frequency dom

ADSD-1410S_Datel.pdf

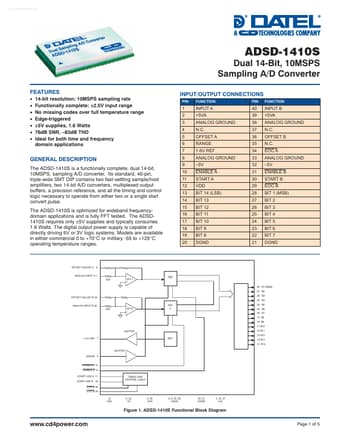

ADSD-1410S Datasheet Preview — Preview of ADSD-1410S PDF
