ADSD-1402S 2MSPS Sampling A/D Converter

ADSD-1402S Description

ADSD-1402S Dual, 14-Bit, 2MSPS Sampling A/D Converter .

ADSD-1402S Features

* 14-bit resolution; 2MSPS sampling rate
* Functionally complete; ±5V input range
* No missing codes over full temperature range
* Edge-triggered; No pipeline delays
* ±5V supplies, 0.6 Watts
* Small, 40-pin, low-cost surface-mount TDIP
* 79dB

ADSD-1402S Applications

* Out-of-range indicator PRODUCT OVERVIEW DATEL's ADSD-1402S is a functionally complete, dual 14- bit, 2MSPS, sampling A/D converter. Its standard, 40-pin, triple-wide SMT DIP contains two fast-settling sample/hold amplifiers, two 14-bit A/D converters, multiplexed output buffers, a precisi

📥 Download Datasheet

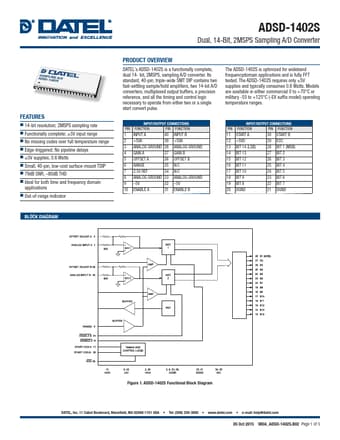

Preview of ADSD-1402S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADSD-1402S
Manufacturer
Datel
File Size
240.30 KB
Datasheet
ADSD-1402S-Datel.pdf
Description
2MSPS Sampling A/D Converter
