ADSD-1420S

20MSPS Sampling A/D Converter

ADSD-1420S Features

* 14-bit resolution; 20MSPS sampling rate Functionally complete; ±2.5V input range No missing codes over full temperature range Edge-triggered ±5V supplies, 1.6 Watts 75dB SNR,

* 80dB THD Ideal for both time and frequency-domain applications INPUT/OUTP

ADSD-1420S General Description

The ADSD-1420S is a functionally complete, dual 14-bit, 20MSPS, sampling A/D converter. Its standard, 40-pin, triple-wide SMT DIP contains two fast-settling sample/hold amplifiers, two 14-bit A/D converters, multiplexed output buffers, a precision reference, and all the timing and control logic nece.

ADSD-1420S Datasheet (372.15 KB)

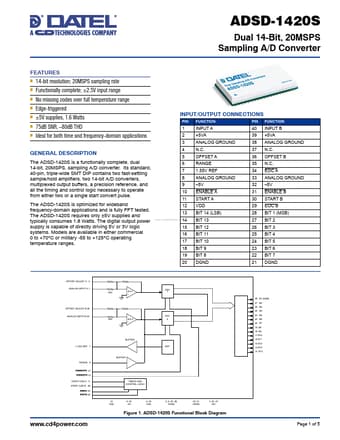

Preview of ADSD-1420S PDF

Datasheet Details

Part number:

ADSD-1420S

Manufacturer:

Delta Electronics

File Size:

372.15 KB

Description:

20msps sampling a/d converter.
