ADSD-1420S Analog-to-Digital Converters

ADSD-1420S Description

.

ADSD-1420S Features

* 14-bit resolution; 20MSPS sampling rate
* Functionally complete; ±2.5V input range
* No missing codes over full temperature range
* Edge-triggered
* ±5V supplies, 1.6 Watts
* 75dB SNR,
* 80dB THD
* Ideal for both time and frequency-dom

ADSD-1420S Applications

* ADSD-1420S Dual 14-Bit, 20MSPS Sampling A/D Converter PRODUCT OVERVIEW The ADSD-1420S is a functionally complete, dual 14-bit, 20MSPS, sampling A/D converter. Its standard, 40-pin, triple-wide SMT DIP contains two fast-settling sample/hold amplifiers, two 14-bit A/D converters, multiplexed output

📥 Download Datasheet

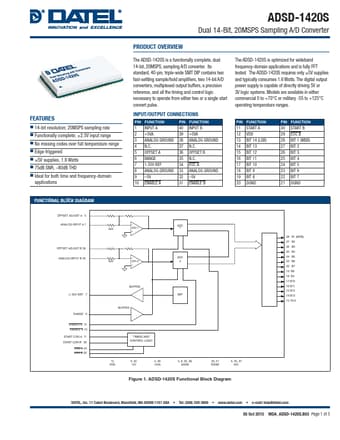

Preview of ADSD-1420S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADSD-1420S
Manufacturer
Datel
File Size
290.98 KB
Datasheet
ADSD-1420S-Datel.pdf
Description
Analog-to-Digital Converters
