IPM04S0A0R10FA Integrated Point-of-Load Power Modules

Over-Current Protection To provide protection in an output over load fault condition, the unit is equipped with internal over-current protection. Wh.

IPM04S0A0R10FA Features

* High efficiency: 94% @ 5.0Vin, 3.3V/10A out Small size and low profile: 17.8x15.0x7.8mm (0.70”x0.59”x0.31”) Output voltage adjustment: 0.9V~3.3V Monotonic startup into normal and pre-biased loads Input UVLO, output OCP Remote ON/OFF Output short circuit protection Fixed frequency operation Copper pa

IPM04S0A0S10FA_DeltaElectronics.pdf

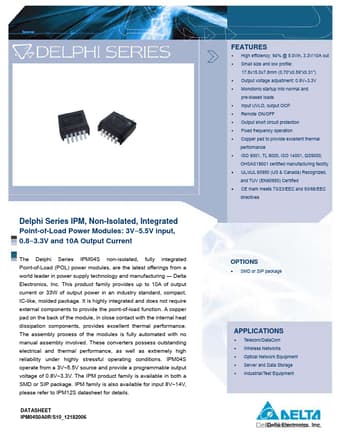

IPM04S0A0R10FA Datasheet Preview — This datasheet PDF includes multiple part numbers: IPM04S0A0R10FA, IPM04S0A0S10FA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IPM04S0A0R10FA, IPM04S0A0S10FA

Manufacturer:

Delta Electronics

File Size:

593.69 KB

Description:

Integrated point-of-load power modules.

Note:

This datasheet PDF includes multiple part numbers: IPM04S0A0R10FA, IPM04S0A0S10FA.
Please refer to the document for exact specifications by model.
